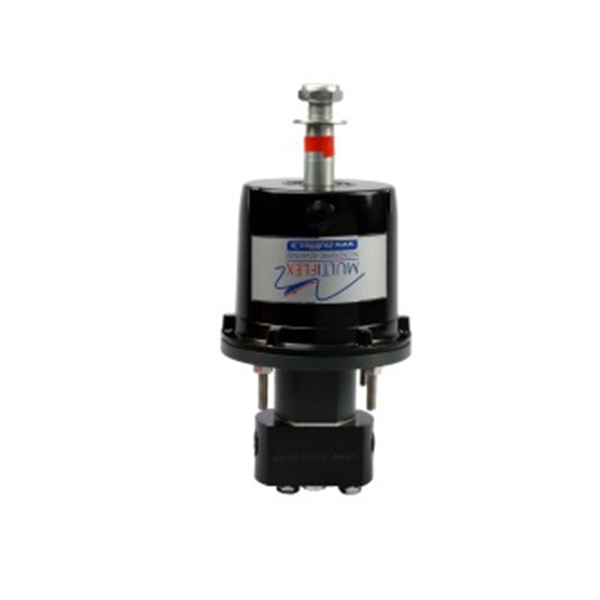

• Hydraulic Helm Pump
• MULTIFLEX
• MADE IN INDIA

Features

• Built in lock valve
•  Pressure relief feature
• 3/4” tapered shaft to suit all marine steering wheels
• Includes ORB fittings
• Volume :63cc

Function:

• A helm pump is an Axial Piston Manual pump . The function of the helm pump is to push oil in the hydraulic circuit when the steering wheel mounted on the pump shaft is rotated. The helm pump is usually fitted with a lock valve to prevent the rudder feedback to the steering wheel . Also for safety, the pump is fitted with a relief valve.

Technical Specifications:

• Volume: 63CC// 3.80 CI
• Elbow Fittings: 1/2″
• Relief Pressure in Bar: 60
• Recommended Steering Wheel Diameter: 600mm
